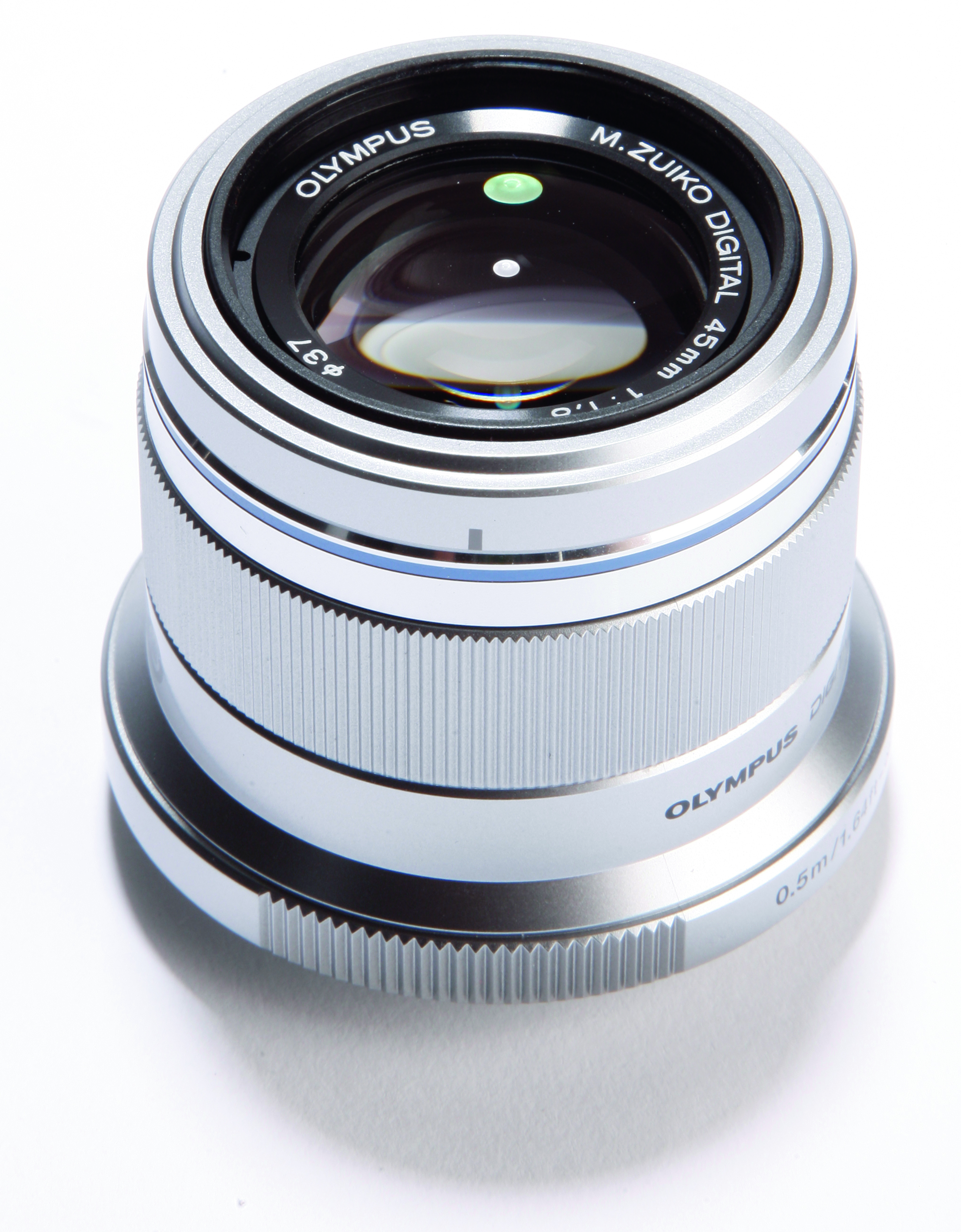

Olympus M.Zuiko Digital 45mm f/1.8 MSC Lens Review
Review Date :
- Sample Photos: See sample image gallery
The stand-out feature of Olympus 45mm prime lens is its fast maximum aperture...
* Fast f/1.8 aperture
* Ideal portrait lens
* Quick AF system
* Optimised for video
* Keenly priced
The stand-out feature of Olympus 45mm prime lens is its fast maximum aperture. Although there is no need for the bright viewfinder image that f/1.8 offers (because electronic viewfinders compensate for the lens aperture very well) it is important in providing a narrow depth-of-field that can be used to isolate the in-focus subject from out-of-focus backgrounds. It also means that a lower sensitivity setting can be used, so reducing potential problems from image noise in dimly-lit conditions.
The key question, however, is whether the MTF results are strong enough to encourage the use of maximum aperture. And the answer is a resounding yes because the Olympus 45mm portrait lens achieves the full maximum theoretical figure of 0.5 cycles-per-pixel at f/4 and f/5.6. Repeat testing confirmed that this was not a fluke. Given this achievement, 20/20 has been awarded for MTF performance even though the lens drops to 0.22 cycles-per-pixel (below the 0.25 cycles-per-pixel critical threshold) at f/22.
As is common for CCS lenses, the only control on the 45mm prime is a rotating ring that occupies the centre third of the lens barrel and provides manual focussing, which can be performed either viewing the entire image or at any magnification between 5x and 14x. It is also possible to use whole-area viewing even if Focus Assist (magnification) is selected provided that one of the various quick-set menus is active. In aperture-priority mode, for example, while the aperture-adjustment menu is live movement of the manual focussing ring doesn't magnify the image: sometimes this can be a really useful short-cut to avoid losing sight of the entire frame.
A nice but purely cosmetic touch is the ability to choose the colour of the foremost part of the lens housing to match the colour of the host body. Equally cosmetic is what Olympus calls a metal-like exterior design. The previously-reviewed 12mm has a genuinely metal-bodied construction but the 45mm is merely matched for appearance. Similarly, there are no distance and depth-of-field markings on the 45mm lens.
In short, although the 45mm f/1.8 lens is a stunning and well-priced lens it cannot match the exquisite feel of its 12mm f/2 stable-mate. Nevertheless, this is the first lens ever to hit 0.5 cycles-per-pixel and that alone secures its place in WDC hall-of-fame for lens tests.
